Microsoft Maia 200 の Deep Dive

はじめに

Microsoft Maia 200 の Deep Dive の内容から Maia 100 との差分がどのくらいあるのか、見てみます。

techcommunity.microsoft.com

Maia 100 の振り返り

Maia 100 の詳細は、Hot Chips 2024 で公開された情報から下記にまとめています。

vengineer.hatenablog.com

Maia 200 Architecture

図なのは無いのですが、文章では下記のような内容が書いてあります。

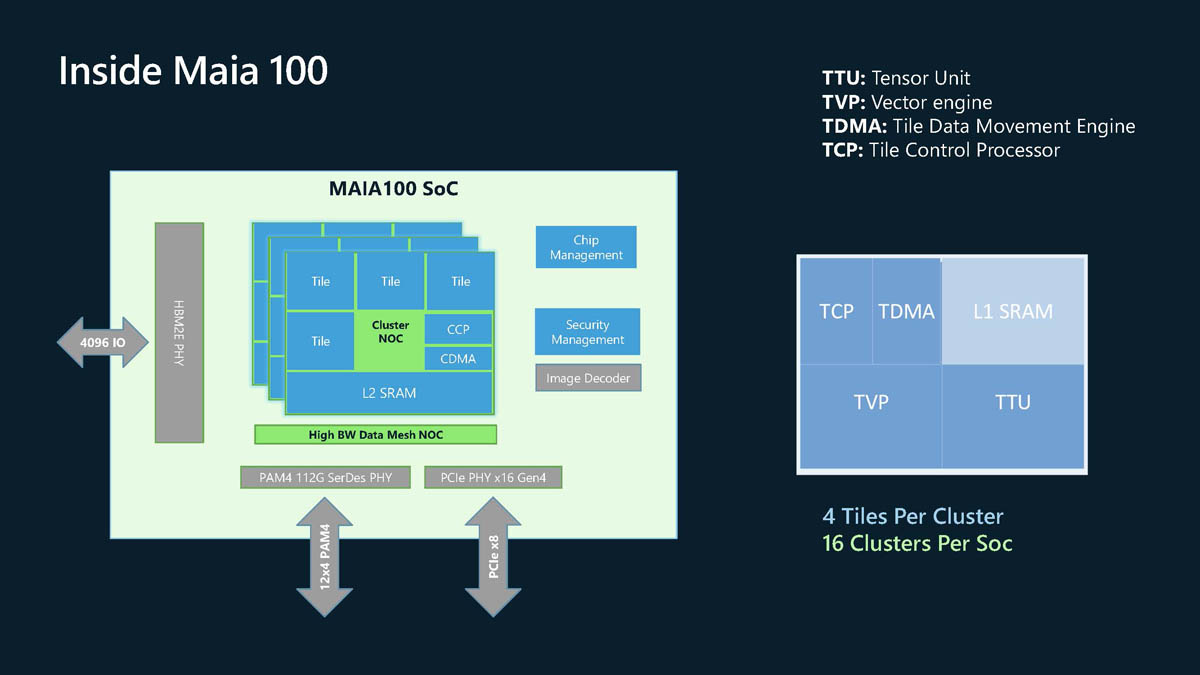

下記は、Maia 100 の図です。上記の5つは、名称は違いますが、同じものがあります。

また、

  • Multiple tiles compose into a cluster, which introduces a second tier of shared locality and coordinated movement.

とあります。これも上記の Maia 100 の図にもあります。Maia 100 の時は、1つの Cluster には 4つの Tile を含みます。

そして、

  • Each cluster contains a large multi-banked Cluster SRAM (CSRAM) accessible across the tiles in that cluster, along with a dedicated cluster DMA subsystem that stages traffic between CSRAM and co-packaged High Bandwidth Memory (HBM).

とあり、こちらは、Maia 100 の L2 SRAM に相当するものだと思います。a dedicated cluster DMA subsystem は、Maia 100 の CDMA に相当するものだと思います。

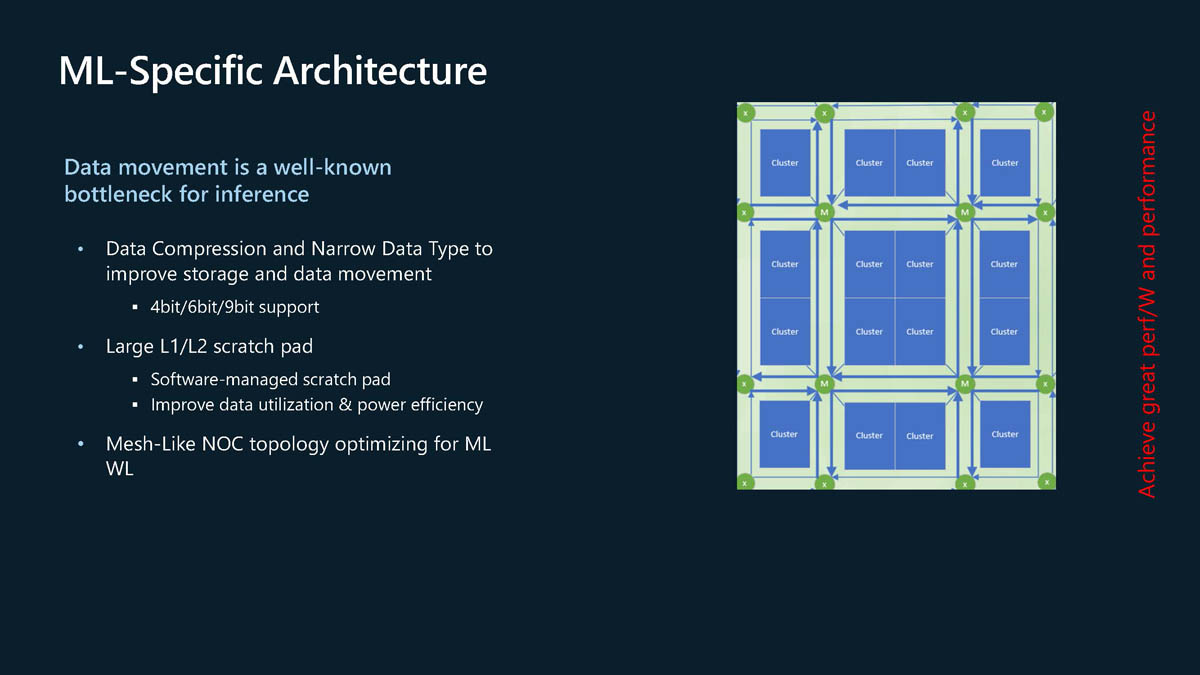

下記は、Maia 100 の 複数Tile が2次元にレイアウトされているものです。Maia 200では、いくつの Tile があるは公開されていませんが、

  • Maia accelerators feature a highly optimized data movement infrastructure, centered around its Direct Memory Access (DMA) subsystem coupled with a hierarchical Network-on-Chip (NoC). The DMA engines are architected for multichannel, high-bandwidth transfer and support 1D/2D/3D strided movement, enabling common ML tensor layouts to be moved efficiently between on-chip SRAM, HBM, and external interfaces while overlapping data movement with compute.

のようになっています。

SRAM の容量

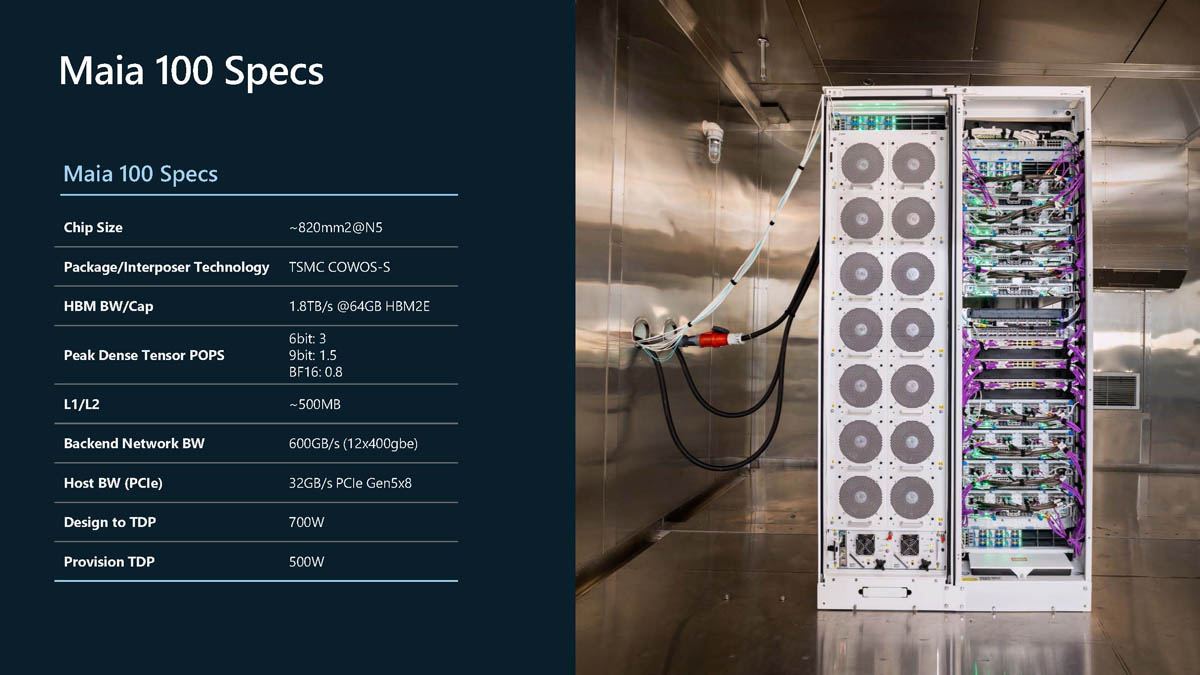

Maia 200 のトータルのSRAMサイズは、278MB です。一方、Maia 100 は、下記のように ~ 500MB です。ざっくり半減です。

Maia 100 では、TSMC 5nmで、Maia 200 では、TSMC 3nm です。5nm => 3nm になって、SRAMのサイズはほぼ変わらないので、Maia 200では半分にして、その分を計算力に割り当てたのでしょうね。

  • This layered DMA architecture enables concurrent, overlapped transfers across memory tiers and across nodes, ensuring compute tiles remain well‑fed under diverse workload conditions.

とありますね。

おわりに

Maia 200 は、Maia 100 のアーキテクチャを踏襲し、計算能力を6bit 3 PFLOPS => 4bit 10 PFLOPs に強化したものなんでしょうね。。
